Classic Rack GP - Portrait

Classic Rack GP - Portrait Specification

Features
Highly Durable

Efficiency
High

Product Type
Other

Material
GP

Application
Home, Commercial

Installation Type
Surface Mounted

Classic Rack GP - Portrait Trade Information

Minimum Order Quantity
10000 Watts

Sample Available
Yes

Sample Policy
Within a certain price range free samples are available

Certifications
Eurocode Certificate ISO 9001:2015 Certificate Legal Entity Identifier (LEI) Certificate

About Classic Rack GP - Portrait

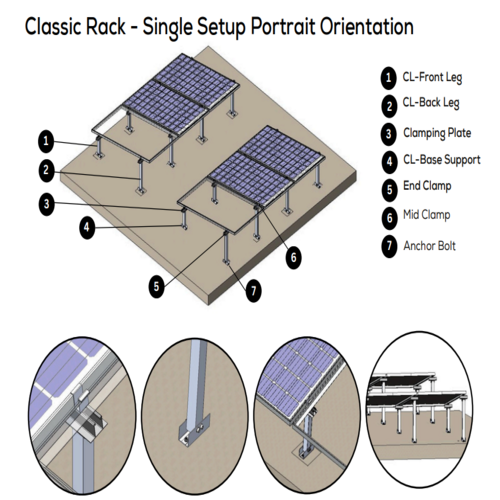

The Classic Rack System is a GP (Galvanized Plain Sheet) - based fixed-type solarstructure for flat roofs. This system has portrait orientation and comes with 5, 10, 15tilt angles. Classic Rack flat roof structure is capable of handling a bigger size of panels(300Wp to 750Wp) and provides a minimum 300mm ground clearance between theroof and panel. The structure can sustain a wind speed of 180 Kmph, as per ISstandards.

The unique is the clamp plate it makes a stronger connection between the base supportand panels. The classic rack is very easy and super fast to install with a minimumnumber of components. The structure is completely made of high-grade metal toprovide continuity of earthing and fasteners are made up of Stainless steel.

5-YEAR WARRANTY

PENETRATIVE SOLUTION

RECYCLABLE MATERIALS

FASTER INSTALLATION

WIND SPEED 180 KMPH

GROUND CLEARANCE 300 MM
