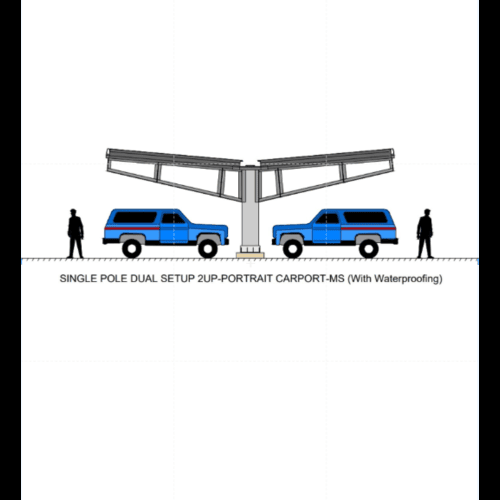

SINGLE POLE DUAL SETUP 2UP-PORTRAIT CARPORT-MS (With Waterproofing)

SINGLE POLE DUAL SETUP 2UP-PORTRAIT CARPORT-MS (With Waterproofing) Specification

Maintenance Type
Low, periodic cleaning and inspection

Features
Waterproof Roofing, Modular Design, Corrosion Resistant, Easy Installation

Efficiency
Depends on PV modules, typically 18%-22%

Input Voltage
As per module and system design

Product Type
Single Pole Dual Setup Carport

Material
Mild Steel (MS) Structure with Waterproofing

Number of Cells
Depends on modules, typically 144 to 156 per module

Power
Customizable-typically supports 10kW to 40kW array

Operating Temperature
-40C to +85C

Max Voltage
Up to 1500V DC

Max System Voltage
1500V DC

Output Voltage
Dependent on modules used, typically 600V-1000V DC

Cable Length
Custom as per site requirements

Switch Mode
Manual or Automatic (optional integration)

Size
2 Up-Portrait Configuration

Dimension (L*W*H)
Approx. 6000mm x 5400mm x 3500mm (customizable)

Color
Standard Grey with powder coating

Weight
Depends on configuration, approx. 800-1000 kg

Application
Solar Carport, EV Charging Station, Covered Parking

Type Of Technology
Photovoltaic Carport Structure

Installation Type
Ground Mounted (Carport) - Single Pole

Anti-Corrosion Coating
Yes (multi-layer)

Snow Load Capacity
Up to 1.5 kN/m2

Surface Treatment
Hot Dip Galvanized and Powder Coated

Drainage System
Integrated Gutter & Downpipe

Mounting Angle
Adjustable, typical 5-15

Roof Sheet Type
High-Strength Corrugated Metal with Waterproof Sealing

Number of Parking Bays
2 (double row)

Compatibility
All standard PV modules (mono/poly/thin film)

Foundation Type
Concrete Footings

Fire Resistance
High, non-combustible steel structure

Wind Load Capacity
Up to 170 km/h

Design Standards
Complies with IEC, IS, and local standards

SINGLE POLE DUAL SETUP 2UP-PORTRAIT CARPORT-MS (With Waterproofing) Trade Information

Minimum Order Quantity
10 Watts

Supply Ability
500 Watts Per Month

Delivery Time
7 Days

About SINGLE POLE DUAL SETUP 2UP-PORTRAIT CARPORT-MS (With Waterproofing)

Installing solar PV panels on car parking structures is a smart and sustainable way to generate clean energy. Our Single Pole Dual Setup 2UP-Portrait Carport-MS (With Waterproofing) transforms conventional parking areas into high-performance solar hubs. This design not only supports renewable energy generation but also offers reliable shade and protection for vehicles from sun and rain all while maintaining an elegant and minimal footprint.

Built for durability and efficiency, the single pole dual setup 2UP-Portrait ensures better space utilization and easy vehicle movement, making it ideal for both commercial and residential installations. With waterproofing integrated into the structure, it adds value by offering weather resistance and structural longevity. This solution is perfect for anyone looking to combine everyday utility with long-term sustainability.

Superior Structural Durability and Safety

The carport frame is constructed from hot-dip galvanized, powder-coated mild steel, providing high fire resistance and multi-layer anti-corrosion protection. It meets global standards such as IEC and IS, ensuring reliability even in extreme weather, and withstands wind speeds up to 170 km/h. The concrete footings deliver solid foundation stability for enhanced security and longevity.

Waterproof Design and Efficient Drainage

A high-strength corrugated metal roof with advanced waterproofing seals protects vehicles while maximizing energy yield. The integrated gutter and downpipe system manage rainwater effectively, reducing maintenance needs and preventing water accumulation or leaks, making it perfectly suited for all-weather conditions.

Customizable and Versatile PV Compatibility

This carport supports a modular design for easy installation and customization. Compatible with all standard mono, poly, and thin-film PV modules, it typically accommodates 10kW to 40kW arrays. The adjustable mounting angle (5-15 degrees) optimizes solar performance across diverse sites and applications, including EV charging and commercial parking areas.

FAQ's of SINGLE POLE DUAL SETUP 2UP-PORTRAIT CARPORT-MS (With Waterproofing):

Q: How is the SINGLE POLE DUAL SETUP 2UP-PORTRAIT CARPORT-MS installed?

A: This carport is ground-mounted using a single pole design with concrete footings for added stability. Installation requires site preparation, concrete foundation setting, assembly of the modular steel frame, and integration of the waterproof roofing and drainage system. It is engineered for quick, straightforward installation by qualified personnel.

Q: What types of vehicles and PV modules are compatible with this carport?

A: The structure accommodates standard-sized cars in a double-row (2-bay) configuration and accepts all standard PV modules, including mono, polycrystalline, and thin-film modules, with 2 up-portrait mounting and module counts typically between 144 to 156 cells per panel.

Q: Where is this carport suitable for use?

A: It is ideal for use in commercial, industrial, or residential parking lots, especially those integrating solar power systems or EV charging stations. Its high wind and snow load capacities, waterproofing, and fire-resistant steel make it suitable for varied climates across India and similar regions.

Q: What process is involved in maintenance, and how often is it required?

A: The carport is designed for low maintenance, requiring only periodic cleaning of the modules and inspection of the drainage system and structural components to ensure longevity and safety. The corrosion-resistant and waterproof construction minimizes the need for frequent repairs.

Q: What are the main benefits of using this photovoltaic carport?

A: Key benefits include dual functionality as a protective vehicle shelter and renewable energy generator, robust weather resistance, adaptable design, modular installation, compatibility with a range of PV modules, and easy integration with EV charging infrastructure.

Q: When can the system's power capacity be customized?

A: Power capacity customization is addressed during the design and ordering process. The system typically supports solar arrays from 10kW up to 40kW, depending on site requirements, ensuring flexibility for various scales and applications.

Q: How does the integrated drainage system enhance the carport's performance?

A: The built-in gutter and downpipe efficiently capture and redirect rainwater, preventing leaks or water pooling on the roof, thus protecting vehicles below and maintaining the structural integrity and performance of the carport over time.
