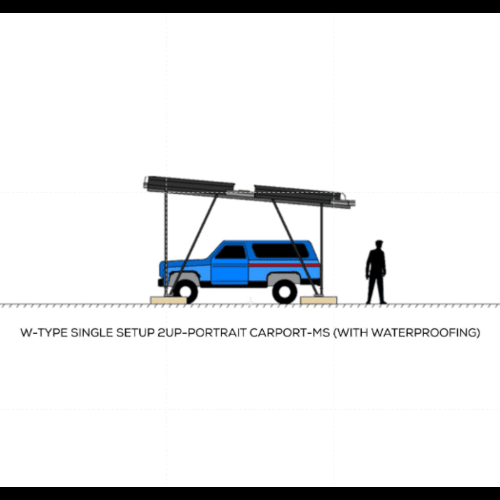

W-TYPE SINGLE SETUP 2UP-PORTRAIT CARPORT-MS

W-TYPE SINGLE SETUP 2UP-PORTRAIT CARPORT-MS Specification

Features
Waterproof

Input Voltage
As per solar module and inverter specification

Efficiency
Depends on Module used and Orientation

Maintenance Type
Low maintenance, Periodic cleaning of modules

Product Type
Carport Structure

Material
Mild Steel (MS)

Number of Cells
Depends on installed Solar Modules

Power
Customizable as per Solar Module Specification

Operating Temperature
-40C to +85C

Max Voltage
Up to 1500 V DC

Max System Voltage
1500 V DC

Output Voltage
As per Solar Panel configuration

Cable Length
As per requirement

Switch Mode
Manual/Automatic (Based on system design)

Size
Single setup, 2 up Portrait (suitable for two vehicles)

Dimension (L*W*H)
Approx. 5.5m x 5.0m x 3.5m (can vary as per design)

Color
Customized (Standard: Grey, as per request)

Weight
Variable, depends on foundation and module load

Warranty
5

Application
Commercial & Residential Parking Carport with Solar Panels

Type Of Technology
Steel Carport Mounting with Portrait Solar Panel Setup

Installation Type
Ground Mounted, Carport Install

Wind Load Resistance
Up to 180 km/h (certified)

Snow Load Resistance
Up to 2.4 KN/m2 (certified)

Fastener Type
Stainless Steel 304/316

Panel Compatibility
Monocrystalline, Polycrystalline, Bi-facial solar modules

Max Output
Up to 15 kW per Carport setup (module dependent)

Surface Finish
Hot-dip galvanized or powder-coated

Ground Clearance
Minimum 2.0 m (vehicle clearance)

Mounting Angle
5 to 30 (adjustable as per site requirements)

Design Life
25 Years

W-TYPE SINGLE SETUP 2UP-PORTRAIT CARPORT-MS Trade Information

Minimum Order Quantity
10 Watts

Supply Ability
1000 Watts Per Month

Delivery Time
7 Days

About W-TYPE SINGLE SETUP 2UP-PORTRAIT CARPORT-MS

W-TYPE SINGLE SETUP 2UP-PORTRAIT CARPORT-MS: SMART DESIGN MEETS LASTING STRENGTH
Our W-Type Single Setup 2UP-Portrait Carport-MS is engineered for simplicity, strength, and solar efficiency. Built with a robust Steel frame, this design ensures durability, weather resistance, and longterm performance while offering ample protection for parked vehicles.

Its W-Type design reduces ground clutter, making it an ideal solution for optimizing space in both residential and commercial settings. With seamless solar panel integration and waterproofing, its the perfect blend of modern engineering and clean energy innovation.

Superior Strength and Weather Resistance

This carport stands out for its certified wind load resistance up to 180 km/h and snow load capacity of 2.4 KN/m2. Constructed with hot-dip galvanized or powder-coated mild steel, it ensures exceptional longevity, even in challenging Indian climates. Stainless steel fasteners and a robust waterproof coating make it both sturdy and reliable for commercial and residential settings.

Flexible Design for Maximum Solar Efficiency

Engineered with flexibility in mind, the carport supports mounting angles adjustable from 5 to 30 degrees, enabling optimal solar panel orientation to maximize energy generation. Its 2-up portrait design fits two vehicles comfortably, and its compatibility with multiple solar module types-monocrystalline, polycrystalline, and bifacial-makes it a versatile choice for diverse applications.

Customizable Solutions for Every Site

Every aspect of the W-TYPE SINGLE SETUP can be customized: size, output power (up to 15 kW), cable lengths, color, and even output voltage are configurable to meet project specifications. The structure is suitable for a range of operating temperatures (-40C to +85C), and can be equipped with either manual or automatic switching depending on the system design. Installation is straightforward and designed to fit a wide array of site conditions.

FAQ's of W-TYPE SINGLE SETUP 2UP-PORTRAIT CARPORT-MS:

Q: How is the W-TYPE SINGLE SETUP 2UP-PORTRAIT CARPORT installed?

A: The carport is ground-mounted and designed for straightforward on-site installation. Its adjustable mounting angles (5-30) accommodate various locations and solar orientations, and the structure allows for customizations based on site requirements. Installation can be performed by professional teams provided by the manufacturer or supplier.

Q: What types of solar panels are compatible with this carport setup?

A: This carport supports monocrystalline, polycrystalline, and bifacial solar modules. The structure is designed to accommodate a variable number of cells and different panel technologies, making it highly adaptable for diverse project needs and maximizing energy efficiency.

Q: When should periodic maintenance be performed on the carport and solar modules?

A: Maintenance requirements are low, but regular cleaning of the solar modules is recommended to ensure optimal performance. Inspect the structure and fasteners periodically, especially after severe weather events, to ensure integrity and functionality.

Q: Where can the carport be used most effectively?

A: It is ideal for both commercial and residential parking environments in India, including offices, shopping centers, apartment complexes, and private homes. The strong wind and snow load certifications make it suitable for a wide range of geographical locations and climates.

Q: What is the process for customizing the carport to fit specific requirements?

A: Customization involves selecting your preferred module type, color, cable lengths, mounting angle, output power (up to 15 kW per setup), and other features like switch mode (manual or automatic). The manufacturer or supplier will work with you to tailor the carport to your project's technical and aesthetic specifications.

Q: How does this carport benefit users compared to conventional parking solutions?

A: Beyond providing shelter for vehicles, the integrated solar panel system generates clean electricity and reduces energy costs. Its robust, weather-resistant construction and long design life deliver reliability and sustainability, while customizable features allow for seamless integration into different parking environments.
